Our Plastics Catalog

Quality plastic products in Melbourne

Supplying the plastic products that you need

High abrasion resistance
Low coefficient of friction
Impact resistance
Wear resistance
Excellent mechanical properties
Low weight
Excellent vibration dampening
High chemical resistance
Creep resistance
Fatigue strength
Rigidity

A comprehensive range of plastic products

Through the correct selection of a plastics solution for your application, we are able to take into account which of these properties is likely to suit your specific requirements. Many plastic materials are physiologically safe and can, therefore, be used in sensitive areas such as the medical and food industries. Plastic components can also be easily cleaned and maintained for a long and functional service life.

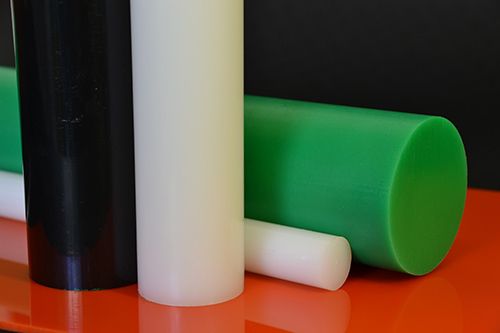

HDPE, HMWPE , UHMWPE Polyethylenes

SKU PE

AU$0.00

In stock

Quantity:

Product Details

HDPE:High Density Polyethylenes are resistant to a wide range of chemicals. They have excellent electrical insulation properties, practically no moisture absorption and maintain their properties even at low temperatures. HDPE is ideal for cutting boards in food processing areas.

UHMWPE:Ultra High Molecular Weight Polyethylene has the highest impact strength and best abrasion resistance of any thermoplastic today. Self lubricating, ideal for wear strips, chain guides, etc. Used widely in the food and packaging industries for guide rails rollers, scraper blades, star wheels, feed worms, chute linings, etc

HMWPE:High Molecular Weight Polyethylene provides a good compromise in price and properties for general engineering use. Used in many similar applications to UHMWPE, but where abrasion resistance is not critical.

Key Features:

Very low coefficient of friction
High abrasion resistance
High impact resistance
Good chemical resistance
Good electrical resistance
Light-weight
Weldable
Food safe

Applications:

Flow promoting liners
Conveyor parts
Direct contact with food stuffs
Mechanical bearing parts
Hopper and chute liners
Wear parts and strips
Chain guides
Materials handling

Available in:

Sheet: 1mm - 100mm in Natural , Black or Green

Rod: 10mm - 300mm,

Tube: Not available

Property	Unit	Value
Specific Gravity	G / cm ³	0.93
Tensile Strength	Mpa	20
Max Continuous Operating Temp	°C	80
Max Short Term Operating Temp (3hrs)	°C	130
Hardness	Rockwell M	63
Impact Resistance (Un-notched)	KJ/m²	42
Co-efficient of thermal expansion	m/(m.k) x 10¯6	150-230
Flammability Oxygen Index	%	17.4
Dielectric Strength	KV/mm	45
