Our Plastics Catalog

Quality plastic products in Melbourne

Supplying the plastic products that you need

High abrasion resistance
Low coefficient of friction
Impact resistance
Wear resistance
Excellent mechanical properties
Low weight
Excellent vibration dampening
High chemical resistance
Creep resistance
Fatigue strength
Rigidity

A comprehensive range of plastic products

Through the correct selection of a plastics solution for your application, we are able to take into account which of these properties is likely to suit your specific requirements. Many plastic materials are physiologically safe and can, therefore, be used in sensitive areas such as the medical and food industries. Plastic components can also be easily cleaned and maintained for a long and functional service life.

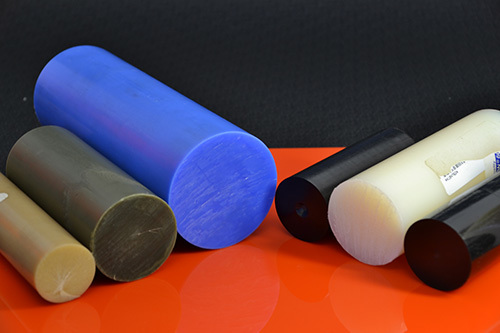

Nylon

SKU NYL

AU$0.00

In stock

Quantity:

Product Details

- The 'Work-horse' of Plastics

The most common engineering thermoplastic in use today. Nylon exhibits high strength and toughness making items made from Nylon well suited for engineering components. Nylon is a great substitute for metals because it is wear resistant, has low friction, and is relatively easy to machine.

Nylon is manufactured in several grades:

Type 6 - Higher impact resistance
Type 66 - Better creep resistance
Glass Filled - Higher stiffness, Higher working temperature
GSM M0S2 Graphite - Excellent for load bearing applications
Special Self lubricating - Superior wear resistance

Key Features:

High Impact strength and toughness
High wear resistance
Very good sliding properties
High tensile strength
Excellent bearing properties
Wide variety of grades available

Applications

Bushes
Bearings
Gears
Wear pads
Rollers
Pulleys

Food Grade: FDA Approved (Natural Only)

Avaliable in:

Sheet: 0.5 - 100mm thick

Rod: 5 - 500mm Dia

Tube: Available cast to order

Property	Unit	Value
Specific Gravity	G / cm ³	1.15
Tensile Strength	Mpa	85
Max Continuous Operating Temp	°C	105
Max Short Term Operating Temp (3hrs)	°C	170
Hardness	Rockwell M	88
Impact Resistance (Un-notched)	KJ/m²	No Break
Co-efficient of thermal expansion	m/(m.k) x 10¯6	80
Flammability Oxygen Index	%	29
Dielectric Strength	KV/mm	25
